CONTAINER DIMENSIONS

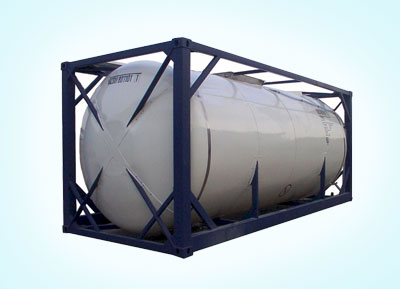

In view of client needs, sea cargo holders come in various measurements and details. Most well-known among ocean cargo compartments are 20’ standard holder, 40’ standard compartment, and 40’ HC. Be that as it may, we can accommodate our clients the entire scope of ocean cargo holders 45’ HC, Reefer, Open Top, Flat Rack, Platform, Tank Containers, and so on. It would be ideal if you take note that we conform to state and government weight impediments while moving the sea cargo holder. If it’s not too much trouble allude to the fitting sea cargo holders measurements and functionalities on the compartment measurements graph on the following page.

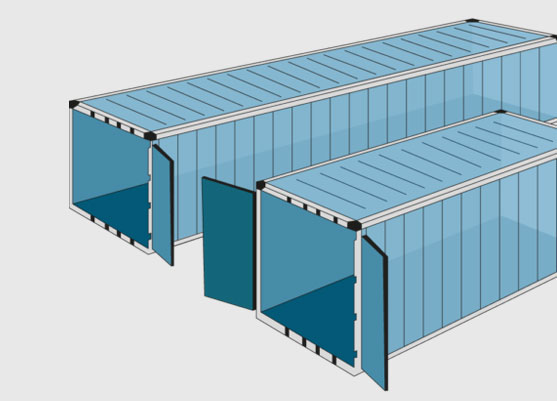

Container Dimensions

Container Dimensions

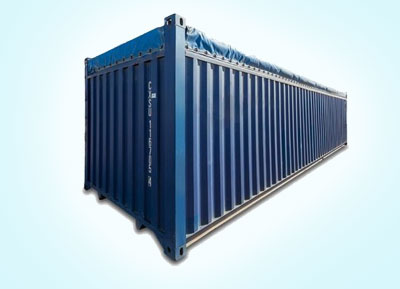

40' Open Top Container

40’ Open Top Container

Cubic Capacity: 66 m³ (2 345 ft³)
Inside Dimensions:
Length: 12.029 m (39’ 5 5/8”)
Width: 2.342 m (7’ 8 1/2”)
Height: 2.326 m (7’ 9 1/2”)
Door Opening:
Width: 2.341 m (7’ 8”)
Height: 2.274 m (7’ 6 1/4”)

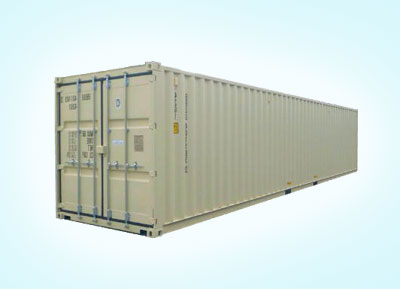

40' Standard Container

40’ Standard Container

Cubic Capacity: 67 m³ (2 390 ft³)
Inside Dimensions:
Length: 12.029 m (39’ 5 1/2”)
Width: 2.350 m (7’ 8 1/2”)
Height: 2.392 m (7’ 10 1/8”)
Door Opening:
Width: 2.340 m (7’ 8 1/8”)
Height: 2.292 m (7’ 6 1/4”)

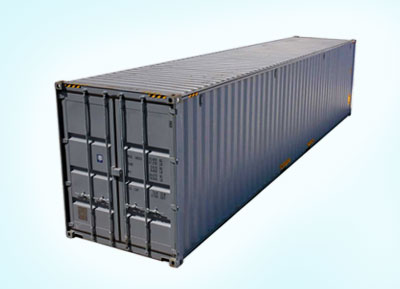

40' High Cube Container

40’ High Cube Container

Cubic Capacity: 76 m³ (2 694 ft³)
Inside Dimensions:
Length: 12.024 m (39’ 5 3/8”)
Width: 2.350 m (7’ 8 1/2”)
Height: 2.697 m (8’ 10 1/8”)
Door Opening:
Width: 2.340 m (7’ 8”)
Height: 2.597 m (8’ 5 3/4”)

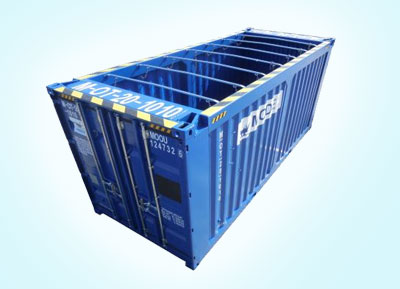

20' Open Top Container

20’ Open Top Container

Cubic Capacity: 33 m³ (1 149 ft³)
Inside Dimensions:
Length: 5.888 m (19’ 4 1/8”)
Width: 2.345 m (7’ 8 1/2”)
Height: 2.315 m (7’ 9 1/2”)
Door Opening:
Width: 2.286 m (7’ 8”)
Height: 2.184 m (7’ 5 3/4”)

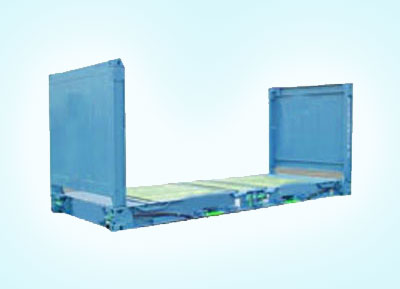

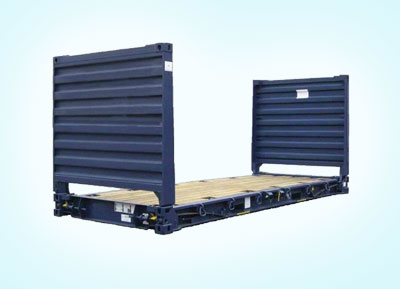

20' Flat Rack

20′ Flat Rack

Cubic Capacity: N/A
Inside Dimensions:
Length: 5.698 m (19′ 9 3/4″)
Width: 2.230 m (8′ 0″)
Height: 2.255 m (7′ 3 1/8″)
Door Opening:
Width: N/A
Height: N/A

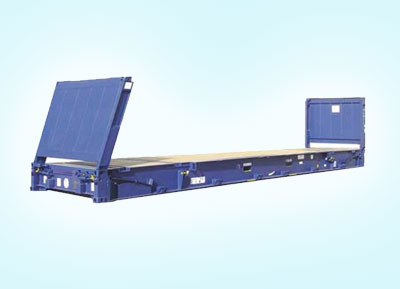

40' Flat Rack

40′ Flat Rack

Cubic Capacity: N/A
Inside Dimensions:
Length: 11.832 m (39′ 7 7/8″)
Width: 2.228 m (7′ 3 1/2″)
Height: 1.981 m (6′ 6″)
Door Opening:
Width: N/A
Height: N/A

20' Flat Rack Collapsible

20′ Flat Rack Collapsible

Cubic Capacity: N/A
Inside Dimensions:
Length: 5.675 m (18’6″)
Width: 2.213 m (7’3″)
Height: 2.270 m (7’4″)
Door Opening:
Width: N/A
Height: N/A

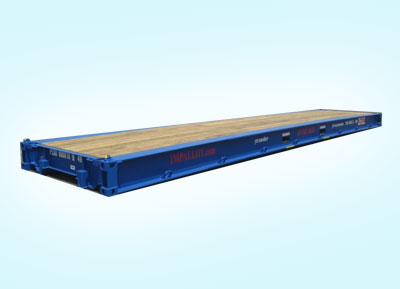

20' Platform

20′ Platform

Cubic Capacity: N/A
Inside Dimensions:
Length: 6.058 m (19’11”)
Width: 2.438 m (8’0″)
Height: 0.370 m (1’3″)
Door Opening:
Width: N/A
Height: N/A

20' Platform Container

20’ Platform Container

Cubic Capacity: N/A
Inside Dimensions:
Length: 6.058 m (19’11”)
Width: 2.438 m (8’0″)
Height: 0.370 m (1’3″)
Door Opening:
Width: N/A
Height: N/A

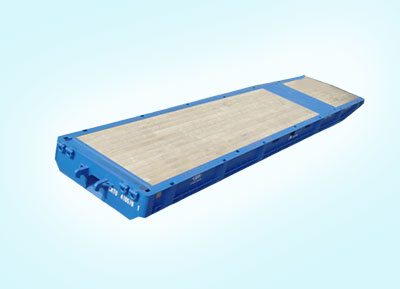

40' Platform Container

40’ Platform Container

Cubic Capacity: N/A
Inside Dimensions:
Length: 12.192 m (39′ 12″)
Width: 2.245 m (7′ 4″)
Height: 0.648 m (2′ 1 1/2″)
Door Opening:
Width: N/A
Height: N/A

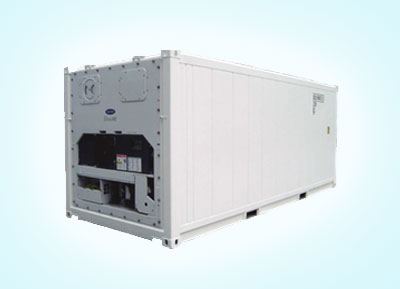

20' Refrigerated Container

20’ Refrigerated Container

Cubic Capacity: 30 m³ (1 056 ft³)
Inside Dimensions:
Length: 5.724 m (18′ 1 7/8″)
Width: 2.286 m (7′ 7 3/10″)
Height: 2.014 m (7′ 7 3/4″)
Door Opening:
Width: 2.286 m (7′ 7 3/16″)
Height: 2.067 m (7′ 6 3/16″)

40' Refrigerated Container

40’ Refrigerated Container

Cubic Capacity: 60 m³ (2 120 ft³)
Inside Dimensions:
Length: 11.840 m (37′ 11 1/4″)
Width: 2.286 m (7′ 6 1/4″)
Height: 2.120 m (7′ 5″)
Door Opening:
Width: 2.286 m (7′ 6″)
Height: 2.195 m (7′ 2 1/8″)

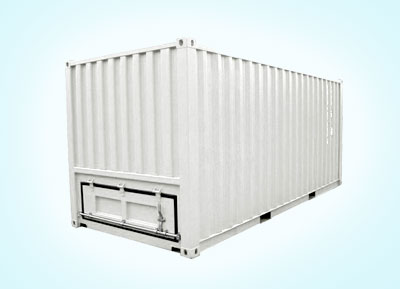

20' Bulk Container

20’ Bulk Container

Cubic Capacity: 32 m³ (1 130 ft³)
Inside Dimensions:
Length: 5.934 m (19′ 5 1/2″)
Width: 2.358 m (7′ 8 4/5″)
Height: 2.340 m (7′ 8 1/8″)
Door Opening:
Width: 2.335 m (7′ 8″)
Height: 2.292 m (7′ 6 1/4″)

40' Platform Container

40’ Platform Container

Cubic Capacity: N/A
Inside Dimensions:
Length: 12.192 m (39′ 12″)
Width: 2.245 m (7′ 4″)
Height: 0.648 m (2′ 1 1/2″)
Door Opening:
Width: N/A
Height: N/A
